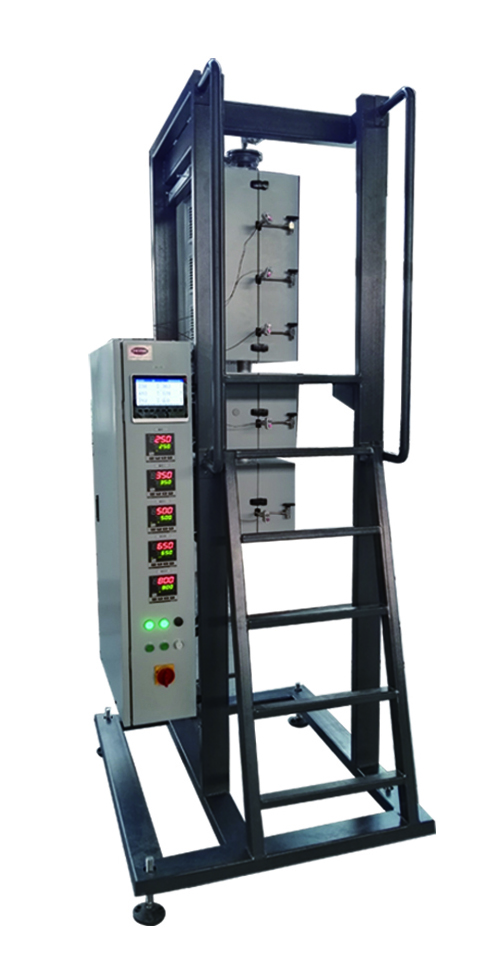

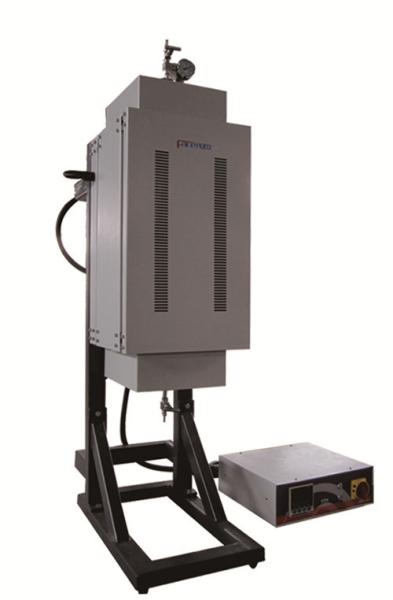

1300℃ Lab vertical tube furnace FGL(L) Vertical Tubular Furnace with LED High strength stainless steel pushbutton

Description:

The vertical tubular furnace is designed into a horizontal and vertical combined dual-purpose structure, and can work vertically and horizontally. The ceramic fiber FEC heating module and the resistance wire-embedded surrounding heating mode are adopted, and the imported intelligent temperature control system is integrated with the high-precision temperature testing elements and devices to precisely test the temperature.

➢Characteristics:

◆Working temperature: RT～1000℃ and RT～1200℃ optional.

◆Intelligent preprogrammed temperature controller: Can edit, save and transfer multiple programs.

◆Unique structure: Suitable for horizontal and vertical use.

◆Over-temperature protective function: The power is off automatically when the temperature exceeds the permissible set values.

◆Safety protection: The power is off automatically when the furnace body leaks current.

◆Double-layer furnace mantle air-cooled structure: Low surface temperature.

◆LED high-strength, anti-damage and all-stainless steel buttons: Durable.

➢Extra Options (Please indicate when placing the order.)

◆Furnace measuring system (oxygen content testing system, temperature testing system)

◆Vacuum system (rotary vane mechanical pump, diffusion pump unit, molecular pump unit)

◆Atmosphere system (floater flowmeter, mass flowmeter)

◆Monitoring system (temperature recorder, touch screen remote monitoring)

◆The flange is provided with the hoist ring, and the sample can be vertically hoisted in the furnace tube by a metal wire to be sintered.

Note: The optional accessories shall be equipped with the expansion platform.

➢ Technical Parameters

Note: The number of other temperature zones and the length of other heating zones can be customized according to the clients’ process requirements.

Suzhou Sushen Furnaces Co., Ltd. located in Building B6, No. 655, Jinfeng Road, High-tech District, Suzhou City, Jiangsu Province, China. With modern industrial plants, the company has the R & D Center, the Technical Department, the Production Department, the Quality Inspection Department, Sales Marketing Department, the Personal Department, After-Sales Department and the Financial Department.

With decades of years of abundant experiences and top-class technologies, we specialized in producing all kinds of laboratory furnaces and industrial furnaces such as

Annealing Furnaces,

Car Bottom Furnaces,

Bell Type Furnaces,

Bell Type Annealing Furnaces,

Vacuum Annealing Furnaces,

Box Type Furnaces,

Mesh Belt Furnaces,

Vertical Type Furnaces,

Industrial Gas Furnaces etc.

We have two Brand, Brand "Susen" is mostly for customized big industrial furnaces; and Brand "Facerom" is mostly for laboratory furnaces. We have established a long-term cooperation with China university of science and technology laboratories and the first-class research institutes in China to provide a full range of thermal technology solutions for the most cutting-edge research needs.

We are committed to the industrial field of industrial expansion, and many microelectronics, chemical, magnetic materials, nanomaterials, advanced ceramics, solar photovoltaic photovoltaic, power cell materials, special fiber materials enterprises to provide a complete set of advanced furnace equipment and technology services.

All the furnaces could be customized according to customers’ requirement.

We emphasized in Customers First, Quality Improvement and Continuous Innovation, our products have won great reputation among our customers home and abroad.

Contact us today to let us serve your needs!
